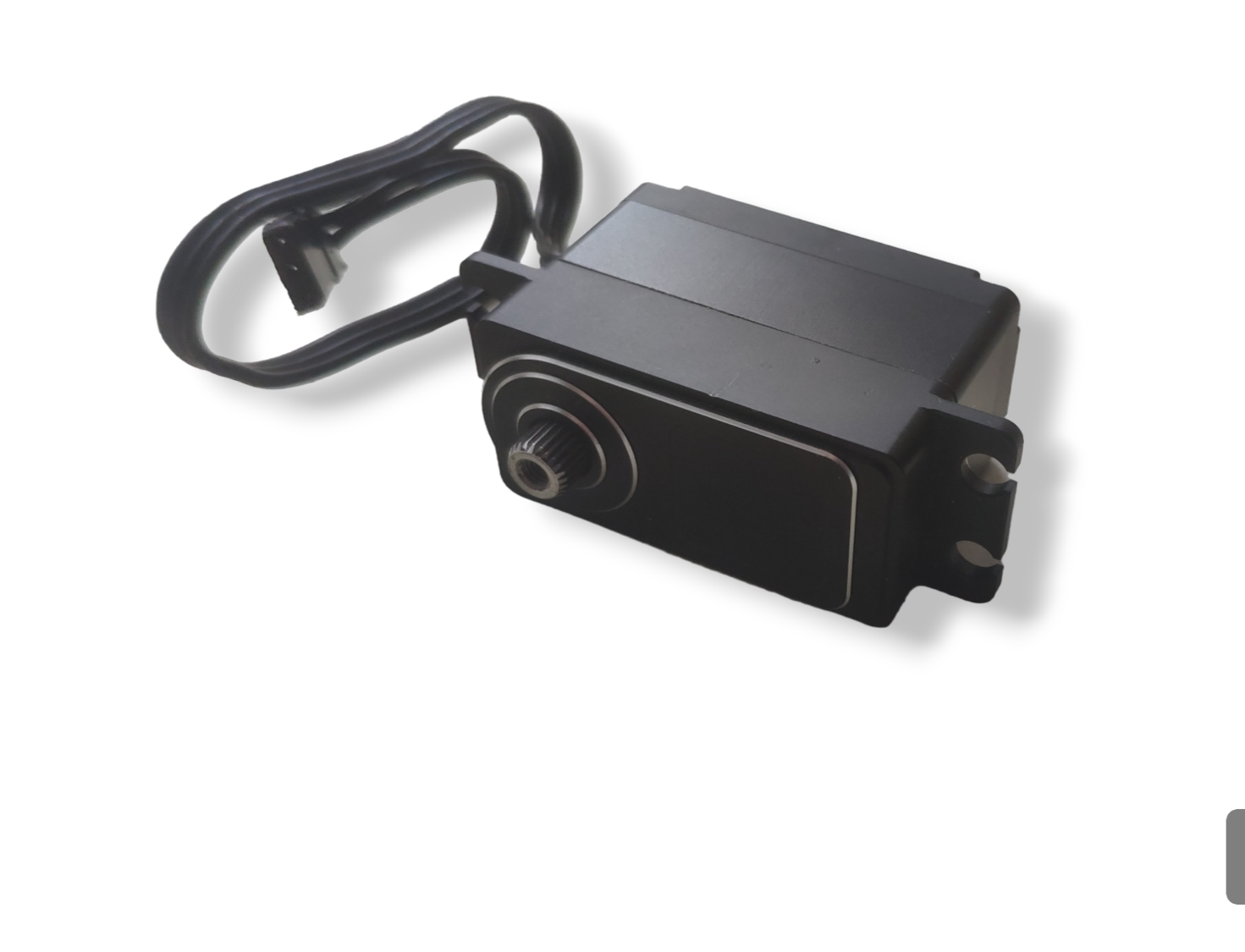

RCES Low profil digital Waterproof IP67 - 20 KG RCES-20LF

RCES Low profil digital Waterproof IP67 - 20 KG RCES-20LF

• • Operating voltage: 6-8.4 V
  • Operating speed:
    • 6.0V: 0.072 s/60°
    • 7.4 V: 0.068 s/60°
    • 8.4 V: 0.060 s/60°
  • Torque:
  • • 6 V: 16 kg-cm
    • 7.4 V: 20 kg-cm
    • 8.4 V: 25 kg-cm
  • Spline (horn gear): 25T
  • Size: 41x20.5x29mm
  • Weight: 61g
  • Rotation direction: 180° (1000-2000μsec)

  • Operational displacement: 220
  • Neutral position: 1520μsec
  • Maximum rotation: ≈180° (500-2500μsec)
  • Pulse width range: 500-2500μsec
  • Deadband width: 2μsec
  • Connector wire length: 300mm
